14 Fundamental domains for Bianchi groups
 14.1 Bianchi groups
 14.2 Swan's description of a fundamental domain
 14.3 Computing a fundamental domain
 14.4 Examples
 14.5 Computing a free resolution for SL_2(mathcal O_-d)
 14.6 Some sanity checks
 14.7 Group presentations
 14.8 Finite index subgroups

14 Fundamental domains for Bianchi groups

14.1 Bianchi groups

The Bianchi groups are the groups G_-d=PSL_2(cal O_-d) where d is a square free positive integer and cal O_-d is the ring of integers of the imaginary quadratic field Q(sqrt-d). These groups act on upper-half space

{\frak h}^3 =\{(z,t) \in \mathbb C\times \mathbb R\ |\ t > 0\}

by the formula

\left(\begin{array}{ll}a&b\\ c &d \end{array}\right)\cdot (z+tj) \ = \ \left(a(z+tj)+b\right)\left(c(z+tj)+d\right)^{-1}\

where we use the symbol j satisfying j^2=-1, ij=-ji and write z+tj instead of (z,t). Alternatively, the action is given by

\left(\begin{array}{ll}a&b\\ c &d \end{array}\right)\cdot (z+tj) \ = \ \frac{(az+b)\overline{(cz+d) } + a\overline c t^2}{|cz +d|^2 + |c|^2t^2} \ +\ \frac{t}{|cz+d|^2+|c|^2t^2}\, j \ .

We take the boundary ∂ frak h^3 to be the Riemann sphere C ∪ ∞ and let overlinefrak h^3 denote the union of frak h^3 and its boundary. The action of G_-d extends to the boundary. The element and each element of the number field Q(sqrt-d) are thought of as lying in the boundary ∂ frak h^3 and are referred to as cusps. Let X denote the union of frak h^3 with the set of cusps, X=frak h^3 ∪ {∞} ∪ Q(sqrt-d). It follows from work of Bianchi and Humbert that the space X admits the structure of a regular CW-complex (depending on d) for which the action of G_-d on frak h^3 extends to a cellular action on X which permutes cells. Moreover, G_-d acts transitively on the 3-cells of X and each 3-cell has trivial stabilizer in G_-d. Details are provided in Richard Swan's paper [Swa71b].

We refer to the closure in X of any one of these 3-cells as a fundamental domain for the action G_-d. Cohomology of G_-d can be computed from a knowledge of the combinatorial structure of this fundamental domain together with a knowledge of the stabilizer groups of the cells of dimension ≤ 2.

14.2 Swan's description of a fundamental domain

A pair (a,b) of elements in cal O_-d is said to be unimodular if the ideal generated by a,b is the whole ring cal O_-d and ane 0. A unimodular pair can be represented by a hemisphere in overlinefrak h^3 with base centred at the point b/a ∈ C and of radius |a|. The radius is ≤ 1. Think of the points in frak h^3 as lying strictly above C. Let B denote the space obtained by removing all such hemispheres from frak h^3.

When d ≡ 3 mod 4 let F be the subspace of overlinefrak h^3 consisting of the points x+iy+jt with -1/2 ≤ x ≤ 1/2, -1/4 ≤ y ≤ 1/4, t ≥ 0. Otherwise, let F be the subspace of overlinefrak h^3 consisting of the points x+iy+jt with -1/2 ≤ x ≤ 1/2, -1/2 ≤ y ≤ 1/2, t ≥ 0.

It is explained in [Swa71b] that F∩ B is a 3-cell in the above mentioned regular CW-complex structure on X.

14.3 Computing a fundamental domain

Explicit fundamental domains for certain values of d were calculated by Bianchi in the 1890s and further calculations were made by Swan in 1971 [Swa71b]. In the 1970s, building on Swan's work, Robert Riley developed a computer program for computing fundamental domains of certain Kleinian groups (including Bianchi groups). In their 2010 PhD theses Alexander Rahm and M.T. Aranes independently developed Pari/GP and Sage software based on Swan's ideas. In 2011 Dan Yasaki used a different approach based on Voronoi's theory of perfect forms in his Magma software for fundamental domains of Bianchi groups. Aurel Page developed software for fundamental domains of Kleinian groups in his 2010 masters thesis. In 2018 Sebastian Schoennenbeck used a more general approach based on perfect forms in his Magma software for computing fundamental domains of Bianchi and other groups. Output from the code of Alexander Rahm and Sebastian Schoennenbeck for certain Bianchi groups has been stored iin HAP for use in constructing free resolutions.

More recently a GAP implementation of Swan's algorithm has been included in HAP. The implementation uses exact computations in Q(sqrt-d) and in Q(sqrtd). A bespoke implementation of these two fields is part of the implementation so as to avoid making apparently slower computations with cyclotomic numbers. The account of Swan's algorithm in the thesis of Alexander Rahm was the main reference during the implementation.

14.4 Examples

The fundamental domain D=overlineF ∩ B (where the overline denotes closure) has boundary ∂ D involving the four vertical quadrilateral 2-cells contained in the four vertical quadrilateral 2-cells of ∂ F. We refer to these as the vertical 2-cells of D. When visualizing D we ignore the 3-cell and the four vertical 2-cells entirely and visualize only the remaining 2-cells. These 2-cells can be viewed as a 2-dimensional image by projecting them onto the complex plane, or they can be viewed as an interactive 3-dimensional image.

A fundamental domain for G_-39 can be visualized using the following commands.

gap> D:=BianchiPolyhedron(-39);
3-dimensional Bianchi polyhedron over OQ( Sqrt(-39) )
involving hemispheres of minimum squared radius 1/39
and non-cuspidal vertices of minimum squared height 10/12493 .

gap> Display3D(D);;
gap> Display2D(D);;

Fundamental domain for a Bianchi group Fundamental domain for a Bianchi group

A cusp vertex of D is any vertex of D lying in C ∪ ∞. In the above visualizations for G_-39 several cusp vertices in C are : in the 2-dimensional visualization they are represented by red dots. Computer calculations show that these cusps lie in precisely three orbits under the action of G_-d. Thus, together with the orbit of there are four distinct orbits of cusps. By the well-known correspondence between cusp orbits and elements of the class group it follows that the class group of Q(sqrt-39) is of order 4.

The following additional commands comvert the Bianchi polyhedron D to a regular CW-complex and then display its 1-skeleton.

gap> D:=BianchiPolyhedron(-39);;
gap> Y:=RegularCWComplex(D);
Regular CW-complex of dimension 2

gap> Display(GraphOfRegularCWComplex(Y));

Fundamental domain for a Bianchi group

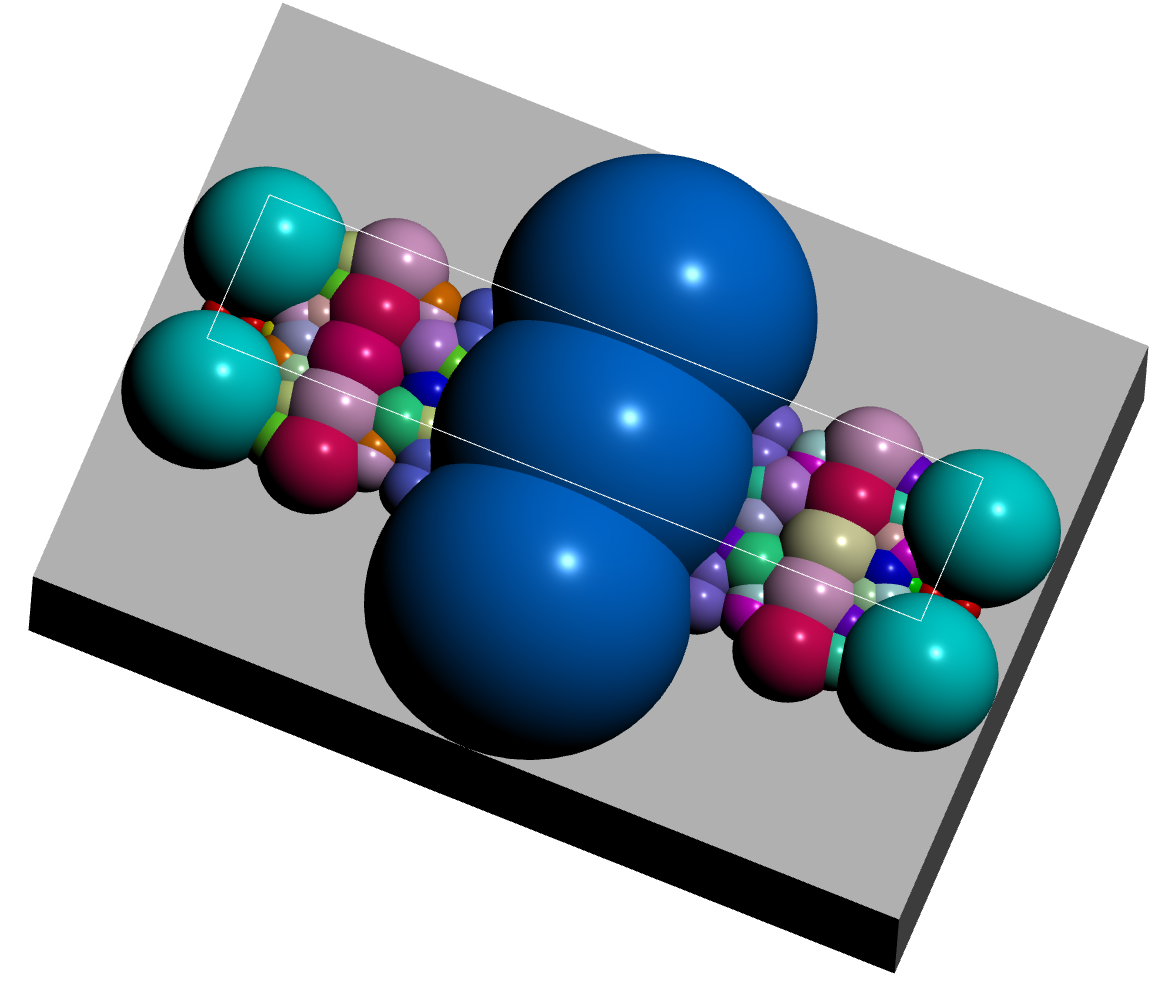

A fundamental domain for G_-22 can be visualized using the following commands.

gap> D:=BianchiPolyhedron(-22);;
gap> Display3D(OQ,D);;
gap> Display2D(OQ,D);;

Fundamental domain for a Bianchi group Fundamental domain for a Bianchi group

Two cusps are visible in the visualizations for G_-22. They lie in a single orbit. Thus, together with the orbit of , there are two orbits of cusps for this group.

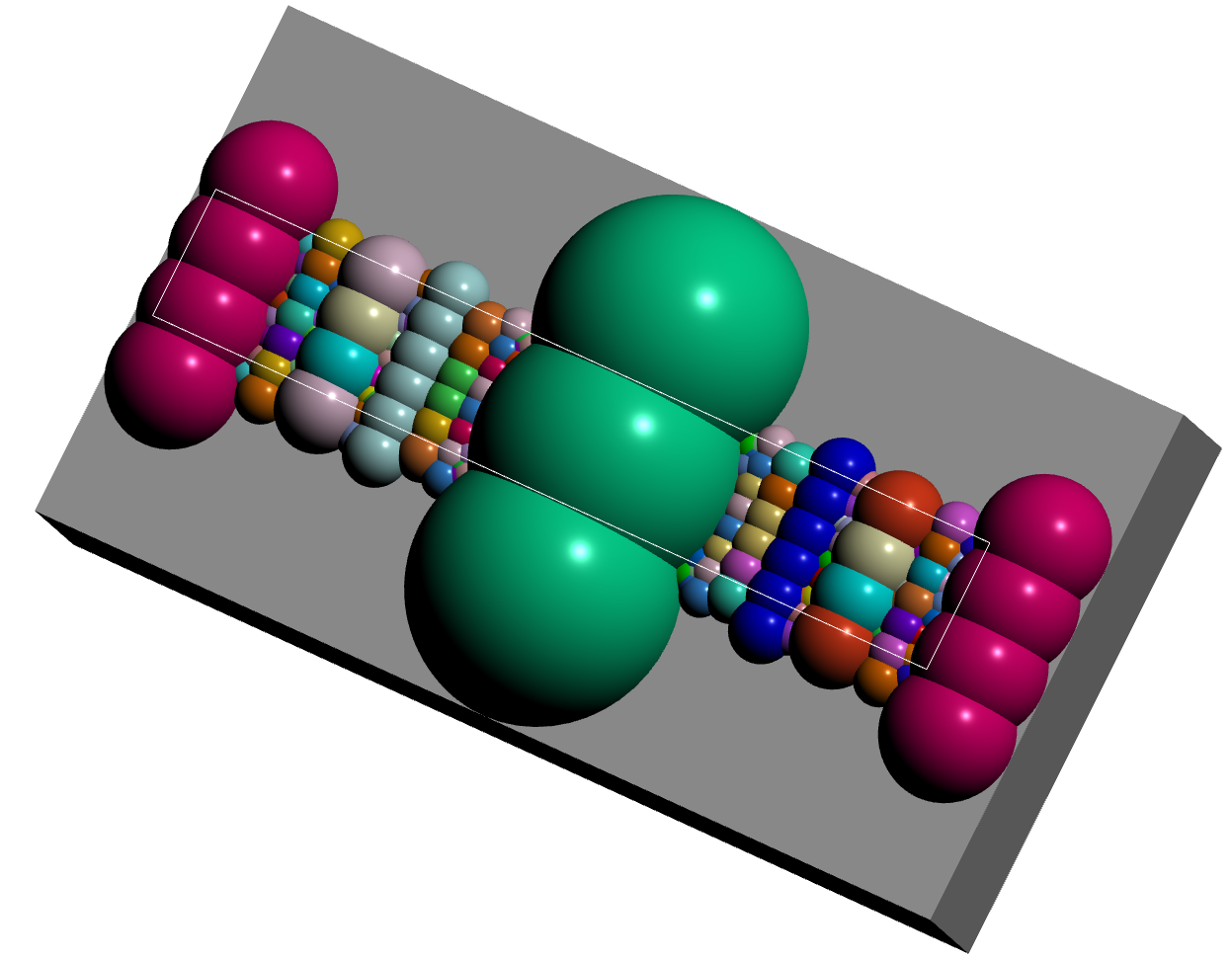

A fundamental domain for G_-163 can be visualized using the following commands.

gap> D:=BianchiPolyhedron(-163);;
gap> Display3D(OQ,D);;
gap> Display2D(OQ,D);;

Fundamental domain for a Bianchi group Fundamental domain for a Bianchi group

There is just a single orbit of cusps in this example, the orbit containing , since Q(sqrt-163) is a principal ideal domain and hence has trivial class group.

A fundamental domain for G_-33 is visualized using the following commands.

gap> D:=BianchiPolyhedron(-33);;
gap> Display3D(OQ,D);;
gap> Display2D(OQ,D);;

Fundamental domain for a Bianchi group Fundamental domain for a Bianchi group

14.5 Computing a free resolution for SL_2(mathcal O_-d)

The above fundamental domains can be used to construct free resolutions for SL_2(mathcal O_-d) and PSL_2(mathcal O_-d). The following commands illustrate the computation of free resolutions for SL_2(mathcal O_-43) and SL_2(mathcal O_-10) and SL_2(mathcal O_-14) and their integral homology (which in each case is periodic of period dividing 4 in degrees ≥ 3). The computation of fundamental domains uses exact arithmetic in the two field extensions Q(sqrtd) and Q(sqrt-d).

gap> K:=BianchiGcomplex(-43);;
gap> R:=FreeGResolution(K,11);;
gap> C:=TensorWithIntegers(R);;
gap> List([0..10],n->Homology(C,n));
[ [ 0 ], [ 0, 0 ], [ 2, 2, 12, 0 ], [ 2, 2, 24 ], [ 2, 2 ], [ 2 ],
  [ 2, 2, 12 ], [ 2, 2, 24 ], [ 2, 2 ], [ 2 ], [ 2, 2, 12 ] ]

gap> K:=BianchiGcomplex(-10);;
gap> R:=FreeGResolution(K,11);;
gap> List([0..10],k->Homology(TensorWithIntegers(R),k));
[ [ 0 ], [ 2, 2, 0, 0, 0 ], [ 2, 2, 2, 12, 0, 0 ], [ 2, 2, 2, 24 ],
  [ 2, 4, 12 ], [ 2, 2, 2, 6 ], [ 2, 2, 2, 12 ], [ 2, 2, 2, 24 ],
  [ 2, 4, 12 ], [ 2, 2, 2, 6 ], [ 2, 2, 2, 12 ] ]

gap> K:=BianchiGcomplex(-14);;
gap> R:=FreeGResolution(K,11);;
gap> List([0..10],k->Homology(TensorWithIntegers(R),k));
[ [ 0 ], [ 6, 0, 0, 0, 0, 0 ], [ 2, 2, 2, 4, 12, 0, 0, 0, 0 ],
  [ 2, 2, 2, 2, 24 ], [ 2, 2, 2, 4, 12 ], [ 2, 2, 2, 2, 24 ],
  [ 2, 2, 2, 4, 12 ], [ 2, 2, 2, 2, 24 ], [ 2, 2, 2, 4, 12 ],
  [ 2, 2, 2, 2, 24 ], [ 2, 2, 2, 4, 12 ] ]

The following commands count the number of orbits of cusps (in addition to the orbit of ). They determine that there is precisely one element in the ideal class group of mathcal O_-43 (i.e it is a principal ideal domain) and that there are precisely two elements in the ideal class group of mathcal O_-10 and precisely four elements in the ideal class group of mathcal O_-14.

gap> K:=BianchiGcomplex(-43);;
gap> List([1..K!.dimension(0)],k->Order(K!.stabilizer(0,k)));
[ 24, 24, 6, 6, 4, 4, 12, 12 ]

gap> K:=BianchiGcomplex(-10);;
gap> List([1..K!.dimension(0)],k->Order(K!.stabilizer(0,k)));
[ 6, 6, 4, 4, 6, infinity ]

gap> K:=BianchiGcomplex(-14);;
gap> List([1..K!.dimension(0)],k->Order(K!.stabilizer(0,k)));
[ 6, 6, 2, 2, 2, infinity, infinity, 2, infinity, 6, 4 ]

14.6 Some sanity checks

There is ample scope for bugs in the implementation of the above method for computing resolutions of Bianchi groups. The following sanity checks lend confidence to the implementation.

14.6-1 Equivariant Euler characteristic

Let X be any cell complex with an action of a group G such that (i) X has finitely many G-orbits of cells, and (ii) the stabilizer subgroup in G for each cell is either finite or free abelian. One defines the equivariant Euler characteristic $$\chi_G(X) = \sum_e (-1)^{dim~ e} / |Stab_G(e)|$$ where e ranges over a set of representatives of the orbits of those cells with finite stabilizers. If G has a finite index torsion free subgroup and if the complex X is contractible then one can define the Euler characteristic of the group to be χ(G) = χ_G(X). It is known that χ (SL_n(mathcal O)) = χ(GL_n(mathcal O)) =0 for mathcal O the ring of integers of a number field [DSGG+16].

One easy test to make in our computations is to check that the equivariant Euler characteristic of the 2-complex is indeed zero. The following commands perform this test for the group SL_2(mathcal O_-23).

gap> K:=BianchiGcomplex(-23);;

gap> chi:=0;;
gap> for n in [0..2] do
> for k in [1..K!.dimension(n)] do
> g:=Order(K!.stabilizer(n,k));
> if g < infinity then chi:=chi + (-1)^n/g; fi;
> od;od;
gap> chi;
0

14.6-2 Boundary squares to zero

The signs in the boundary maps of the free resolution are delicate. Another easy test is to check that the boundary in the resolution squares to zero. The following commands perform this check for the group SL_2(mathcal O_-23).

gap> K:=BianchiGcomplex(-23);;
gap> R:=FreeGResolution(K,10);;
gap> n:=2;;List([1..R!.dimension(n)],k->ResolutionBoundaryOfWord(R,n-1,R!.boundary(n,k)));
[ [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ],
  [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ],
  [  ], [  ], [  ] ]
gap> n:=3;;List([1..R!.dimension(n)],k->ResolutionBoundaryOfWord(R,n-1,R!.boundary(n,k)));
[ [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ],
  [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ],
  [  ], [  ], [  ] ]
gap> n:=4;;List([1..R!.dimension(n)],k->ResolutionBoundaryOfWord(R,n-1,R!.boundary(n,k)));
[ [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ],
  [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ],
  [  ], [  ], [  ] ]
gap> n:=5;;List([1..R!.dimension(n)],k->ResolutionBoundaryOfWord(R,n-1,R!.boundary(n,k)));
[ [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ],
  [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ], [  ],
  [  ], [  ], [  ] ]

14.6-3 Compare different algorithms or implementations

Sebastian Schoennenbeck in his thesis work computed some contractible 2-complexes on which Bianchi groups act with finite stabilizers (even when the ideal class is greater than 1) using a different approach to that of Swan. These computed complexes are stored in HAP and provide an alternative way of computing cohomology for the stored groups. Alexander Rahm in his thesis work implemented Swan's approach and has provided some 2-complexes that are also stored in HAP in cases where the ideal class is equal to 1.

The following commands test that Sebastian Schoennenbeck's 2-complex for SL_2(mathcal O_-23) yields the same integral homology as the above HAP implementation. Both computations use HAP's implementation of Wall's perturbation technique for computing the resolution from the 2-complex.

gap> K:=ContractibleGcomplex("SL(2,O-23)");;
gap> R:=FreeGResolution(K,10);;
gap> List([0..9],n->Homology(TensorWithIntegers(R),n));
[ [ 0 ], [ 12, 0, 0, 0 ], [ 2, 2, 12, 0, 0 ], [ 2, 2, 12 ], [ 2, 2, 12 ],
  [ 2, 2, 12 ], [ 2, 2, 12 ], [ 2, 2, 12 ], [ 2, 2, 12 ], [ 2, 2, 12 ] ]

gap> K:=BianchiGcomplex(-23);;
gap> R:=FreeGResolution(K,10);;
gap> List([0..9],n->Homology(TensorWithIntegers(R),n));
[ [ 0 ], [ 12, 0, 0, 0 ], [ 2, 2, 12, 0, 0 ], [ 2, 2, 12 ], [ 2, 2, 12 ],
  [ 2, 2, 12 ], [ 2, 2, 12 ], [ 2, 2, 12 ], [ 2, 2, 12 ], [ 2, 2, 12 ] ]

14.6-4 Compare geometry to algebra

The number of cusps (i.e. the number of orbits of vertices with infinite stabilizer subgroup) must be precisely one less than the number of elements in the ideal class group of mathcal O_-d. The following commands check this for SL_2(mathcal O_-23) where mathcal O_-23 is known to have class number 3. (This class number is easily computed from a formula in Swan's paper.)

gap> K:=BianchiGcomplex(-23);;
gap> List([1..K!.dimension(0)],k->Order(K!.stabilizer(0,k)));
[ 6, 2, 2, 4, infinity, infinity ]

A visualization of the fundamental domain tells us a certain amount about the algebra. In the case of SL_2(mathcal O_-23)

Fundamental domain for a Bianchi group

a fundamental domain for the action on C by the translation subgroup generated by the matrices $$ \left(\begin{array}{ll} 1 &1\\ 0 &1\end{array}\right), \left(\begin{array}{ll} 1 &\omega\\ 0 &1\end{array}\right) $$ ω = (1+sqrt-23)/2 is indicated by the white rectangle. From this we see that under the action of SL_2(mathcal O_-23) there are at most 11 orbits of 2-cells, the central decagon and ten quadrilaterals. However, the matrix $$ \left(\begin{array}{rr} 0 &-1\\ 1 &0\end{array}\right) $$ maps (z,0) to (-1/z,0) and fixes (0,1). This isometry identifies points on the boundary of the decagon pairwise. These observations are consistent with the above listing of the six orbit stabilizers and the following algebraic information on the boundaries of the 2-cells in the Bianchi 2-complex.

gap> K:=BianchiGcomplex(-23);;
gap> List([1..K!.dimension(2)],k->Length(K!.boundary(2,k)));
[ 10, 4, 4, 4, 4, 4 ]

14.7 Group presentations

Swan's reason for studying fundamental domains was to obtain explicit group presentations for SL_2(mathcal O_-d) for various values of d. The following commands obtain a presentation for SL_2(mathcal O_-23).

gap> K:=BianchiGcomplex(-23);;
gap> R:=FreeGResolution(K,2);;
gap> P:=PresentationOfResolution(R);
gap> G:=SimplifiedFpGroup(P!.freeGroup/P!.relators);
<fp group on the generators [ k, r, s, w, x ]>
gap> RelatorsOfFpGroup(G);
[ w^-1*k*w*k^-1, s^-1*r*s*r^-1, k^6, x^-1*k^-3*x*k^-3, s^-1*k^-3*s*k^-3,
  r^-1*w*x^-1*s*r*w^-1*x*s^-1, r^-1*k^-3*r*k^-3,
  x*k^-2*r^-1*x*r^-1*s^-1*k^-1*s^-1, x^-1*k^3*s*r*x^-1*s*r ]

gap> #Next we identify the generators as matrices
gap> GeneratorsOfGroup(P!.freeGroup);
[ k, m, n, p, q, r, s, t, u, v, w, x, y, z ]
gap> P!.gens;
[ 19, 6, 6, 20, 6, 21, 22, 6, 52, 53, 2, 50, 1, 4 ]

gap> k:=R!.elts[19];
[ [ 1, 1 ],
  [ -1, 0 ] ]
gap> r:=R!.elts[21];
[ [ 3, 3 + -1 Sqrt(-23) ],
  [ -3/2 + -1/2 Sqrt(-23), -5 ] ]
gap> s:=R!.elts[22];
[ [ 2 + 1 Sqrt(-23), 13/2 + 1/2 Sqrt(-23) ],
  [ 5/2 + -1/2 Sqrt(-23), -1 Sqrt(-23) ] ]
gap> w:=R!.elts[2];
[ [ 3/2 + 1/2 Sqrt(-23), -3/2 + 1/2 Sqrt(-23) ],
  [ 3/2 + -1/2 Sqrt(-23), 3 ] ]
gap> x:=R!.elts[50];
[ [ 11/2 + 1/2 Sqrt(-23), 15/2 + -1/2 Sqrt(-23) ],
  [ -1 Sqrt(-23), -4 + -1 Sqrt(-23) ] ]

14.8 Finite index subgroups

The following commands compute the integral homology of a congruence subgroup G of index 24 in SL_2(mathcal O_-23). They also compute a presentation for G with 13 generators and 24 relators.

gap> OQ:=RingOfIntegers(QuadraticNumberField(-23));;
gap> I:=QuadraticIdeal(OQ,[Sqrt(-23)]);
ideal of norm 23 in O(Q(Sqrt(-23)))
gap> G:=HAP_CongruenceSubgroupGamma0(I);
<group of 2x2 matrices in characteristic 0>
gap> IndexInSL2O(G);
24

gap> K:=BianchiGcomplex(-23);;
gap> R:=FreeGResolution(K,11);;
gap> R:=QuadraticToCyclotomicCoefficients(R);;
gap> S:=ResolutionFiniteSubgroup(R,G);;
gap> List([0..10],n->Homology(TensorWithIntegers(S),n));
[ [ 0 ], [ 2, 0, 0, 0, 0, 0, 0, 0, 0 ],
  [ 2, 2, 2, 2, 2, 2, 2, 2, 0, 0, 0, 0, 0, 0, 0 ], [ 2, 2, 2, 2, 2, 2, 2, 2 ],
  [ 2, 2, 2, 2, 2, 2, 2, 2 ], [ 2, 2, 2, 2, 2, 2, 2, 2 ],
  [ 2, 2, 2, 2, 2, 2, 2, 2 ], [ 2, 2, 2, 2, 2, 2, 2, 2 ],
  [ 2, 2, 2, 2, 2, 2, 2, 2 ], [ 2, 2, 2, 2, 2, 2, 2, 2 ],
  [ 2, 2, 2, 2, 2, 2, 2, 2 ] ]

gap> P:=PresentationOfResolution(S);;
gap> H:=SimplifiedFpGroup(P!.freeGroup/P!.relators);
<fp group on the generators [ f8, f10, f15, f70, f86, f125, f132, f138, f182,
  f187, f191, f273, f279 ]>
gap> Length(RelatorsOfFpGroup(H));
24
